We offer a comprehensive range of
high-quality electrical control panels at competitive prices. Our commitment to excellence ensures
reliable functionality and durability, while our cost-effective approach helps you optimize your
production processes without compromising on safety or efficiency.
Let us partner with you to create the perfect electrical control panel solution for your specific
needs.

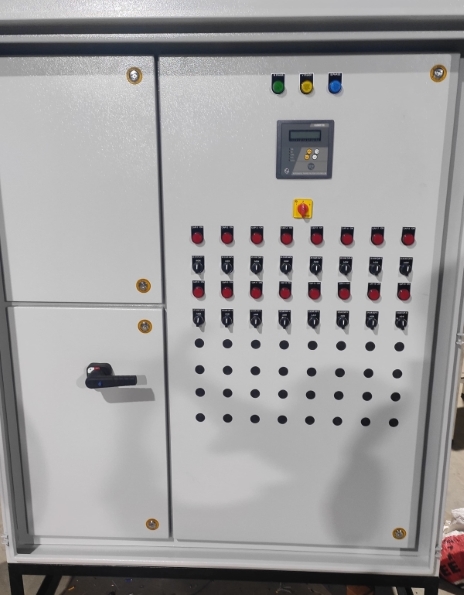

APFC Panels
We manufacture and supply a qualitative range of APFC panels, that are extensively used in various industries. These automatic power factor control panel (apfc) are designed and developed using advanced techniques and are capable of saving maximum power and energy. Fabricated using high-grade rust proof steel, our range is known for reliability and longer life. These APFC Panel are highly efficient and accurately monitor the reactive power in power systems for saving energy and can alter the system voltage as well as current. These panels are also provided with capacitors along with series reactors to minimize the harmonic current. We offer APFC panels with Thyristor, With Aluminum/Copper Detuned reactors, Capacitor Duty Contactor Switching etc.

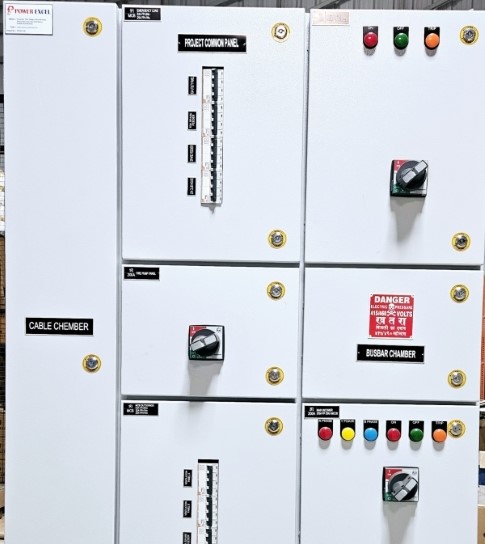

Distribution Panels
Our exclusive gamut of power distribution board is available with the specific requirements of the clients. These boards are specially designed, wired, tested and assembled with different electrical equipment. These power distribution boards are built in a way so as to ensure maximum safety, along with maximum space utilization and cost effectiveness. Also, it is helpful in saving the installation cost, cost of equipment storage, handling and field testing Customization provision is also offered on these panels.

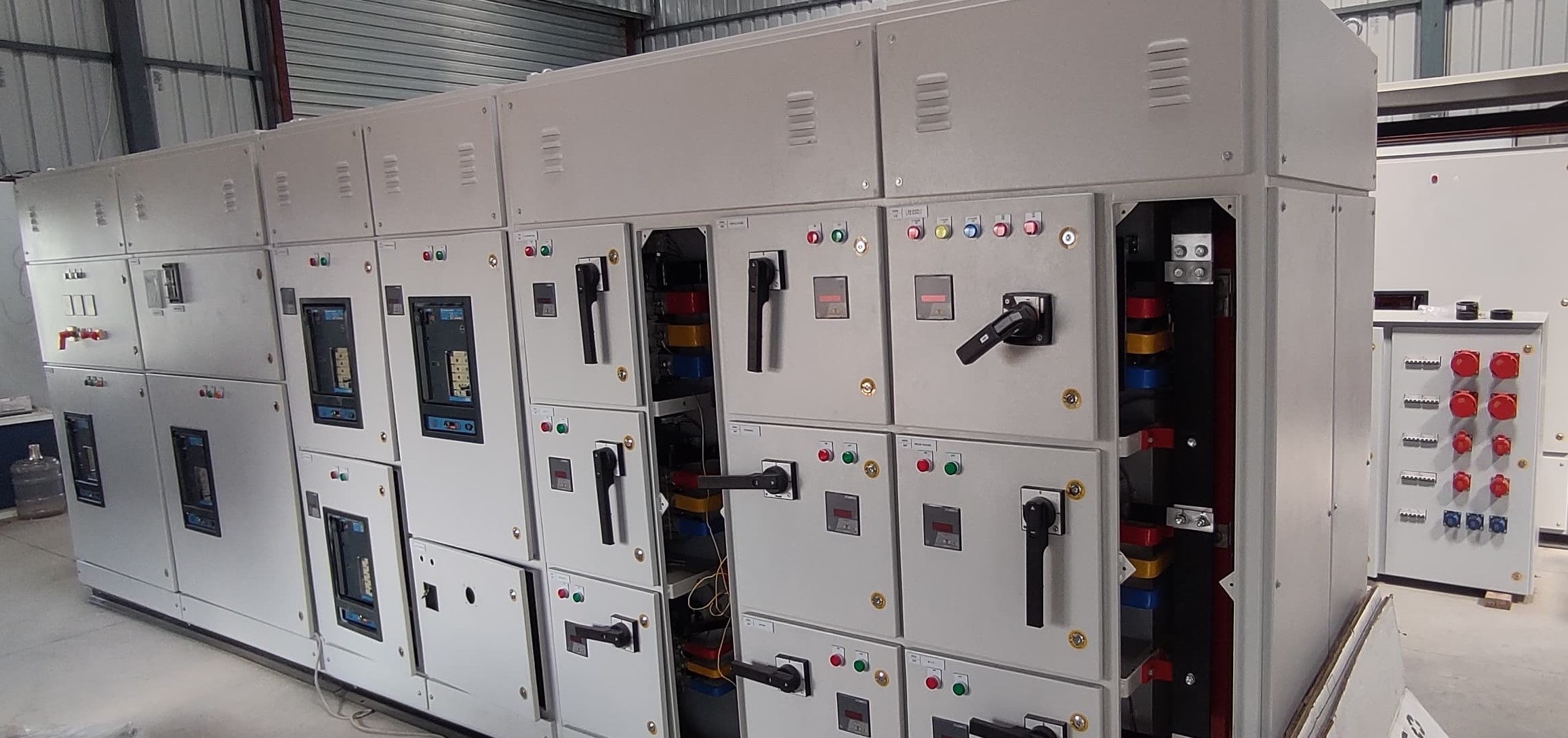

MCC Panels
We manufacture and supply MCC panels enclosure that is spring loaded scraping earthing provided with first make and last brake arrangement. It has large cabling space with adequate cable supports are provided in CBC. The incoming and outgoing stab in type power contacts up to multiple amps that provide very large range of feeders of different types.
Special Features
- Fully draw-out type compartmentalized, modular construction.
- Each trolley is provided with distinct service / test / isolated positions
- Flexible arrangements of modules /trolleys.
- Fully inter-changeable draw-out modules
- Fully enclosed dropper system with cutouts for plug-in contacts.
- Automatic safety shutters are provided to shroud the incoming live contacts when trolleys are removed.
- Single-front or Double-front arrangement with independent droppers for front and rear panel
- Telescopic rails with Bobbin roller to ensure perfect alignment of plug-in contacts
- Racking Trolley in & out can be through suitably designed cranking screw arrangement.
- Male / Female type power and Sliding type silver plated copper /brass control contacts are provided
- Screw type withdrawal and plug-in arrangement
- Instrument plates in swing-out design for mounting feeder instruments, push buttons, indicating lamps, overload, reset push-buttons. Etc.
- Positive earthing through scraping arrangement on the draw out modules and separate vertical earth bus for each section
800V Solar Panel
In comparison with std 415V solar panels these 800V inverter combiner boxes manufactured by Power Excel are provided with extra clearance and creepage distances. Also switchgears like MCCBs and ACBs used are all rated for 800V operation.

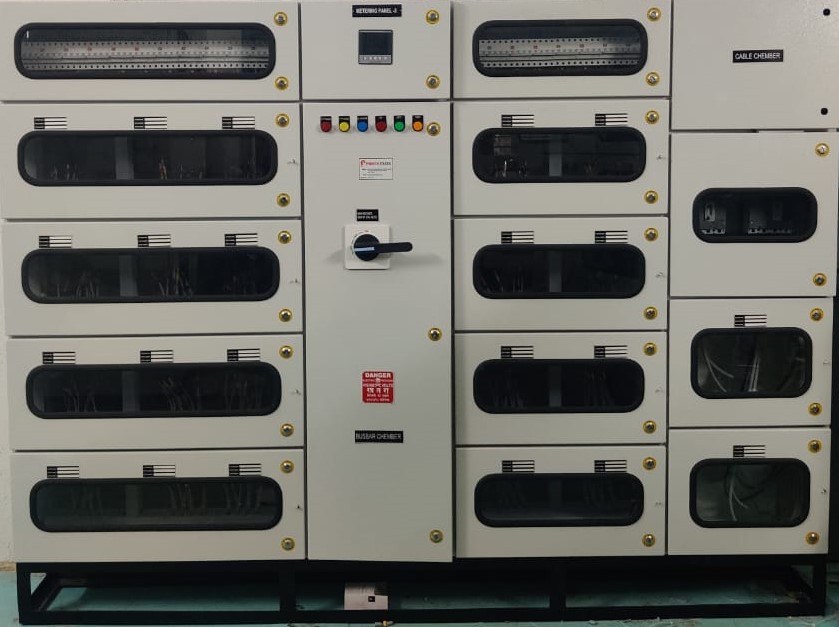

Meter Panel Board
Meter panel board for multiple meter compartments. Metering panels are the indoor and outdoor type which confirms to IP52 degree of protection, All metering panels are properly pre-treated & then powder coated. Some of the salient features of our metering panels. Meter panel board totally enclosed, self-supporting, floor mounted, dust and vermin proof, enclosure fabricated out of 14G/16G, CRCA sheet steel enclosure with 7 tank process.
